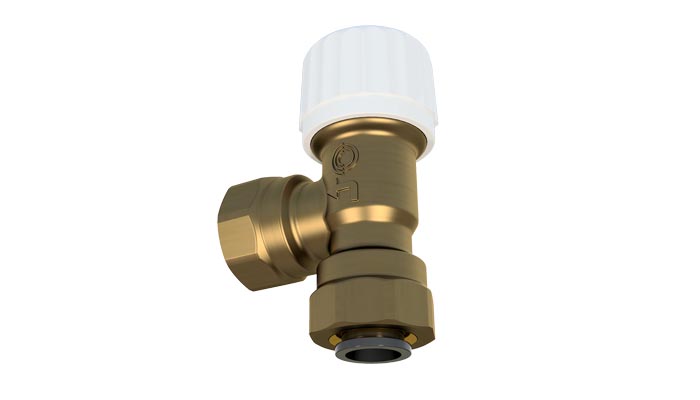

LinFlow-AVízoldali könyök szelep előbeállítással

2-way control valve with push fitting connection and toolless presetting to be controlled by thermoelectric actuators. The valves are specially developed for the demands of chilled beams and other waterborne products.
Equipped with Lindab thermostatic actuators, the valves can achieve a linear valve characteristic (best with APR-40405), which guarantees best temperature control and lowest energy loss during operation. The special valves show extremely low sound generation in combination with Lindab chilled beams which offers a wider range for recommended pressure loss over the beam.
A white protective cap with Lindab logo and a printed logo on the valve body easily identifies the models.

• Specially developed for chilled beams
• Fast push fitting connections (for copper pipes)
• Toolless presetting
• Brass finish
• Connection to actuator: M28 x 1.5 [mm]


For straight version, go to LinFlow-S .
